Parking Air Conditioner
NEWBASE’s energy-efficient 12V/24V truck/RV air conditioner delivers rapid cooling with automotive-grade durability. Ultra-long battery life, CE certification, and green-saving technology ensure reliable performance. Features quiet operation, safe design, and lightweight construction – perfect for long-haul drivers needing eco-friendly climate control in any weather.

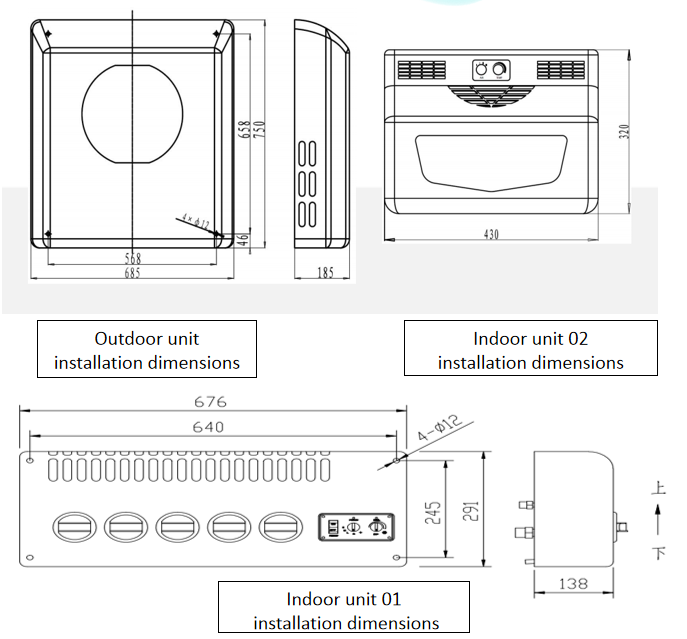

Technical Data and installation dimensions
Split rear-mounted main unit
| Model No. | NBEPAC-2.5A | NBEPAC-2.5B | |
| Refrigerating Capacity | 2500Wats, 8600Btu/h | ||
| Refrigerant | R134a/1.85LBS | ||
| Compressor | Displacement | 13cc/rev | |
| Condensate oil | Zero Easter 68SL/100cc | ||
| Speed | 2000-5500 RPM | ||
Evaporator | Type | Copper tube aluminum fin | |
| Air flow rate | 550m³/h | ||
Condenser | Type | Parallel flow | |
| Air flow rate | 1800m³/h | ||
| Weight（kg） | 76 (condenser) ；16 (Evaporator) | ||
| Dimension | 190*177.5*45 (Condenser) 82.5*107.5*37.5 (Evaporator) | ||
| Temp. control range | 15-30℃adjustable | ||
| Defrosting temp. | 1-2℃ | ||
| Blower speed | 3- grades | ||
| Compound switch | off at 2.5Mpa | ||
| Pressure protection | off at 0.05Mpa | ||
Technical data
| Model | NBEPAC-3A | NBEPAC-3B | |
| Refrigerating Capacity | 3000W, 10236Btu/h | ||
| Refrigerant | R134a/800g | ||
| Compressor | Displacement | 13cc/rev | |
| Condensate oil | Zero Easter 68SL/100cc | ||
| Rated PRM | 2000-5500 | ||
| Evaporator | Type | Copper Tube Aluminum Fin | |
| Air flow rate | 600m³/h | ||
| Condenser | Type | Copper Tube Aluminum Fin | |
| Air flow rate | 1200m³/h | ||
| Voltage/Current | DC12V, ＜75A;dc24v＜40A | ||
| Temperature | -30℃-60℃ | ||
| Weight | 68KG | ||
| Condenser Dimension | 880*990*236mm | ||
