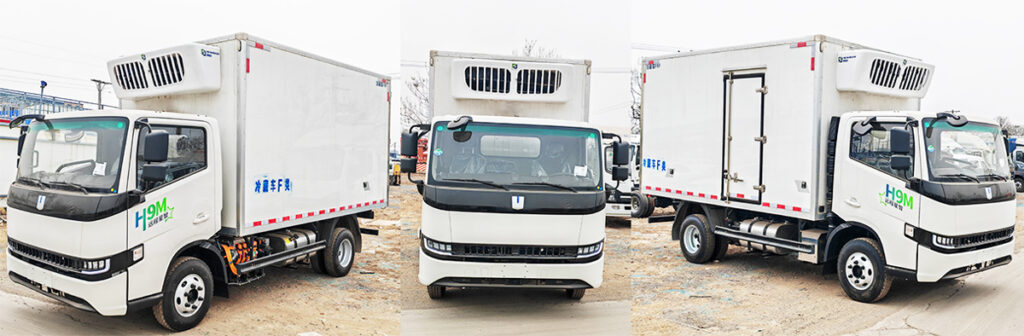

Applications
Truck Refrigeration Unit

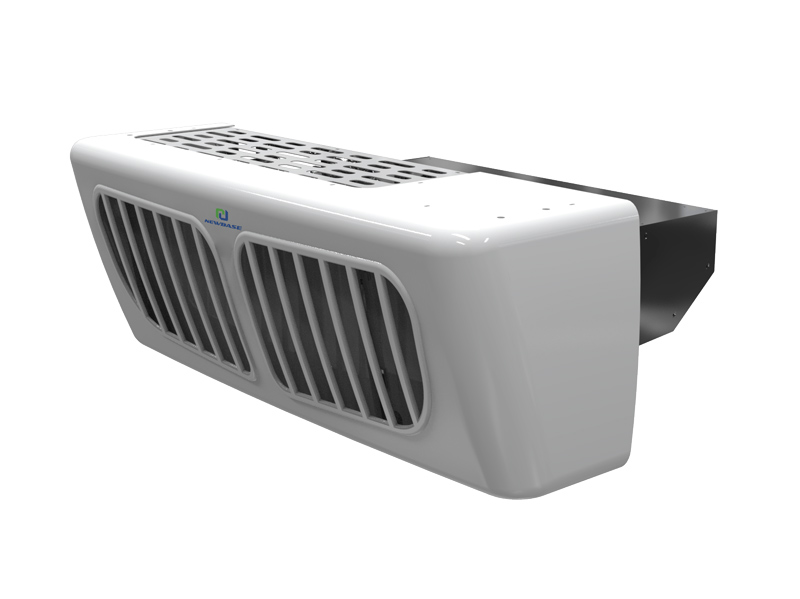

Refrigeration and Freezing Unit Specially for Electric Light Trucks
NBESR-1000A pure electric integrated refrigeration unit is suitable for new energy light trucks (7.5-8.5 meters) powered by pure electric, hydrogen, methanol, or range extender systems, used for refrigerated transport. It is designed for insulated compartments with a capacity of 42 to 46 cubic meters, and can achieve cooling temperature as low as -18 to -20 degrees Celsius. The compressor is installed inside the condenser, and the condenser and evaporator are integrated into a unified structure. This refrigeration unit features an elegant design, rapid cooling, low energy consumption due to variable frequency control, and safe and reliable operation. It includes a built-in 4G module to enable functions such as remote proactive after-sales service and temperature control adjustments. The product features an AC 380V standby power function, allowing for refrigeration without depleting the vehicle’s battery when connected to an external power source while parked. It also has a heating function, with heating temperature reaching 6 to 15 degrees Celsius.
| Model | Refrigeration Unit | |
| Applicable Compartment Volume | 15-25m³ | |
| Temperature Range | -25℃ – +30℃ | |
| Refrigeration Capacity | 0℃/30℃ | 5200W |
| -20℃/30℃ | 2800W | |
| High Voltage | DC250V-DC450V（Low Voltage Platform） | |
| DC380V-DC750V（High Voltage Platform） | ||
| Power | 0℃/+30℃ | 2850W |
| -20℃/+30℃ | 2430W | |
| Drive Mode | Pure Electric | |
| Control Voltage | DC12V（9~16V） | |
| DC24V（16~32V） | ||
| Low Voltage Power supply | DC-DC | |
| Standby Power Supply | AC220V/380V（Optional） | |
| Compressor | DTH356（Variable Frequency） | |
| Refrigerant | R404A | |
| Refrigerant Filling Amount | 2.3kg | |
| Defrosting Method | Hot Gas | |
| Heating Method | Hot Gas | |
| Control Method | CAN Communication | |
| Condenser Assembly | Size（L × W × H,mm） | 1633X485X485 |
| Weight（kg） | 78 | |
| Condenser Fan | Numbers（pcs） | 2 |
| Total Air Volume（m3/h） | 4000 | |
| Evaporator Assembly | Size（L × W × H,mm） | 1092X590X241 |
| Weight（kg） | 20 | |
| Evaporator Fan | Quantity（个pieces） | 2 |
| Total Air Volume（m3/h） | 2000 | |
