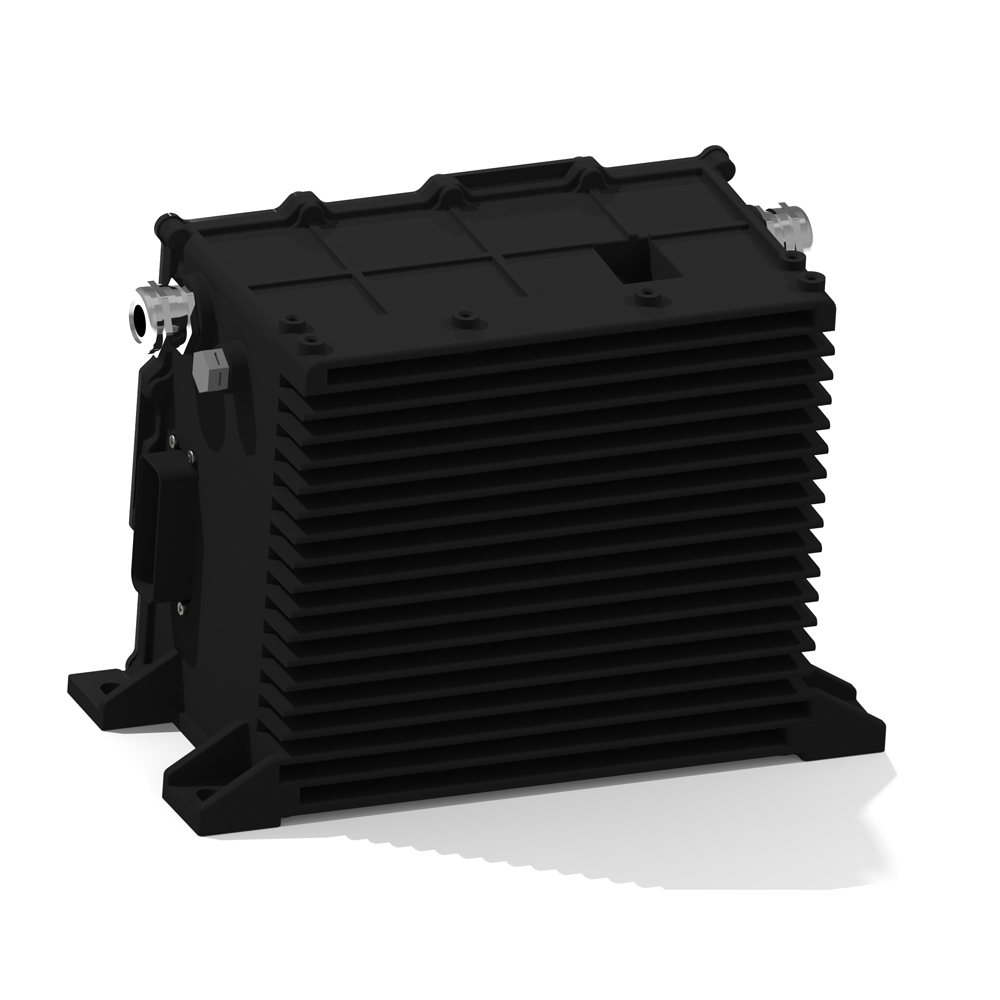

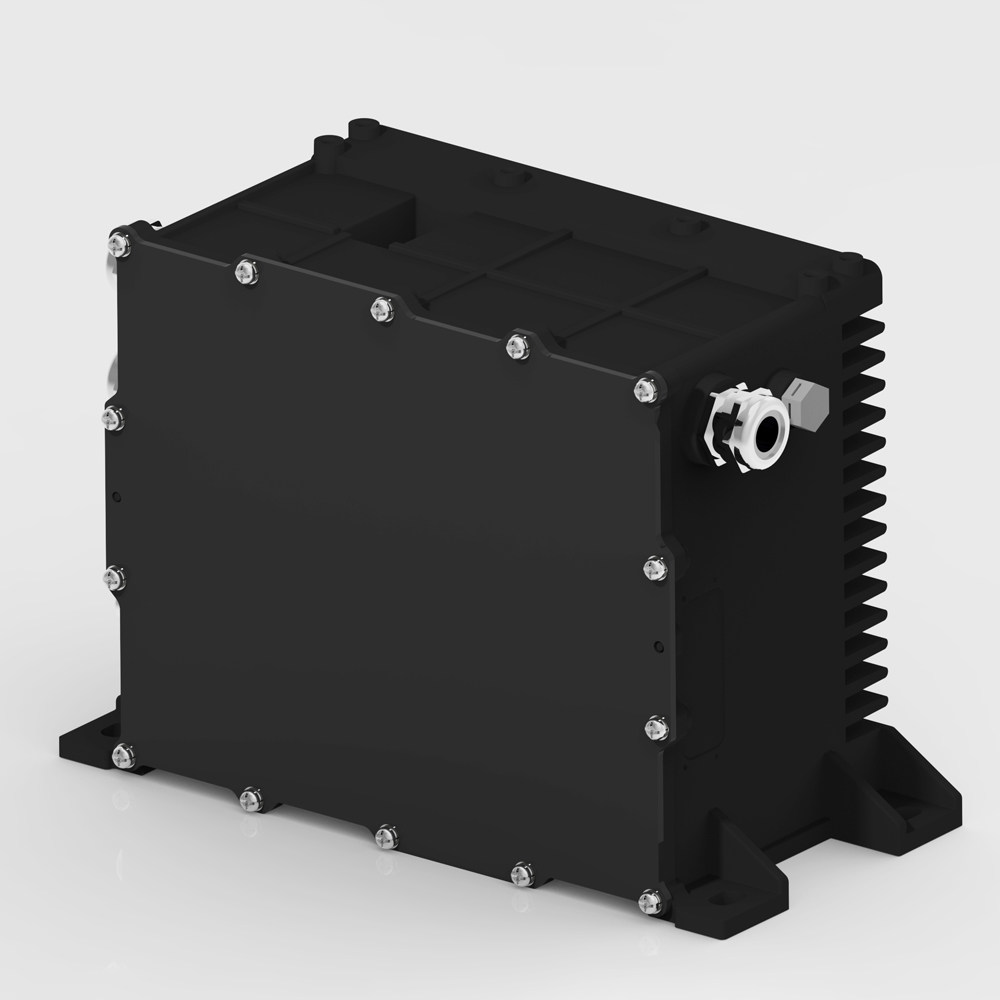

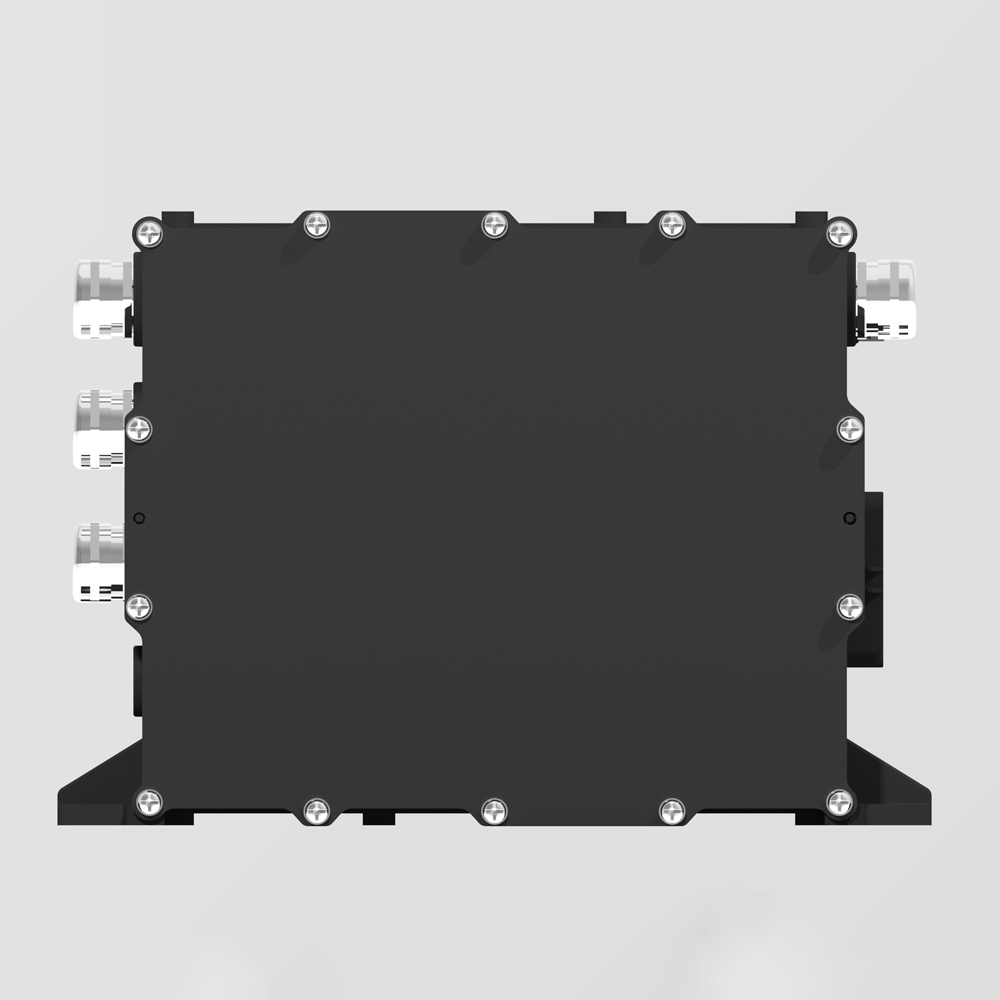

Introducing the NB-015C5A-CPY06 – The Future of Integrated EV Climate Management

In the fast-evolving world of electric commercial transport, efficiency, reliability, and system integration are non-negotiable. That’s why NEWBASE developed the NB-015C5A-CPY06—a next-generation all-in-one thermal control module that unifies power conversion, refrigeration drive, and cabin heating into a single intelligent platform.

Purpose-built for electric refrigerated vans, medical delivery fleets, and food logistics, this compact yet powerful unit eliminates the need for multiple separate components, streamlining installation, reducing failure points, and optimizing energy use—all while maintaining precise temperature control from –20°C to +20°C.

---

Why the NB-015C5A-CPY06 Stands Out

🔋 High-Efficiency Power Conversion

• Input Range: 300–750Vdc (ideal for 400V and 800V EV architectures)
• Output: Stable 27.5V ±0.3V at up to 55A (1500W continuous)
• Peak Efficiency: 96% under typical load conditions
• Low ripple (<500mVp-p) ensures clean power for sensitive electronics

❄️ Smart Refrigeration & Defrost Logic

• Automatically adjusts compressor speed based on real-time temperature differential
• Configurable defrost cycles (0–10 hours) with manual override
• Supports up to 4 electronic expansion valves (EEVs) and dual condenser fans via PWM
• Monitors suction, discharge, ambient, and water temperatures for optimal performance

🔥 Integrated PTC Heating Control

• Enables rapid cabin or cargo warming when needed
• Works in tandem with refrigeration system for year-round climate stability
• Controlled via CAN or hardwired signals for flexible integration

📡 Vehicle-Ready Communication & Diagnostics

• Dual CAN2.0 interfaces for BMS, VCU, and telematics systems
• Real-time fault reporting: high/low pressure, sensor loss, overtemp, voltage faults
• Query button for on-site diagnostics—no laptop required

🛡️ Automotive-Grade Durability

• Overvoltage, undervoltage, overcurrent, short-circuit, and thermal protections
• Aluminum substrate with intelligent thermal derating (>85°C)
• IP-rated enclosure design (with proper cover) for dust and moisture resistance
• Complies with GB/T 1804-C mechanical standards

---

Technical Highlights at a Glance

Feature	Specification
Input Voltage	300–750Vdc
Output Power	1500W (27.5V/55A)
Efficiency	Up to 96%
Communication	CAN2.0 (dual channels)
Enable Method	CAN + 24V signal
Sensor Support	6+ temperature, 2 pressure, 4 EEVs, fans, pump
Protection	OVP, UVP, OCP, OTP, SCP
Operating Temp (Ambient)	–40°C to +85°C
Mounting	Dual-point secure fixation

---

Perfect For:

• Last-mile electric refrigerated delivery vans
• Pharmaceutical cold chain transport (GDP-compliant)
• Frozen food distribution networks
• Mobile cold storage for disaster relief or events

---

Trusted by Global Innovators – Engineered by NEWBASE

At NEWBASE, we don’t just build components—we build confidence. With years of expertise in automotive electronics and a commitment to ISO-certified manufacturing, our solutions are deployed in fleets across Asia, Europe, and the Americas. The NB-015C5A-CPY06 reflects our mission: to make electric logistics smarter, cleaner, and more reliable.

---

Ready to Upgrade Your Fleet’s Thermal System?
Contact NEWBASE today for samples, technical documentation, or custom engineering support.
