B‌‌lend Door Actuator/ Heater Water Valve

NEWBASE: Precision HVAC Actuators & Thermal Control Solutions for Global Automotive OEMs

Engineered for Reliability, Precision, and Longevity in Every Climate

At NEWBASE, we design and manufacture custom blend door actuators (air door actuators) and heater water valves for automotive HVAC systems. Our components serve passenger cars, buses, heavy-duty trucks, construction machinery, agricultural equipment, and specialty vehicles. As an experienced OEM/ODM partner, we deliver precision motion control and thermal management solutions that meet rigorous quality standards (IATF 16949, ISO 16750, ECE R10) while offering full customization for vehicle‑specific architectures.

The Growing Demand for Precision HVAC Actuators & Valves

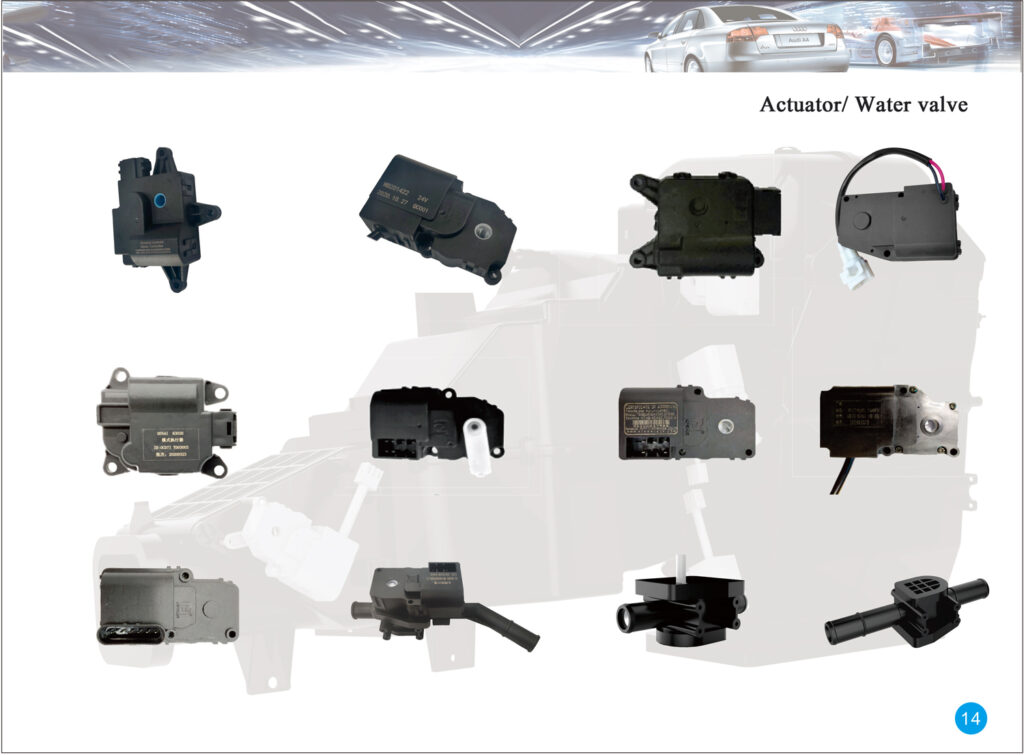

NEWBASE Blend Door Actuators (Air Door Actuators)
NEWBASE Heater Water Valves

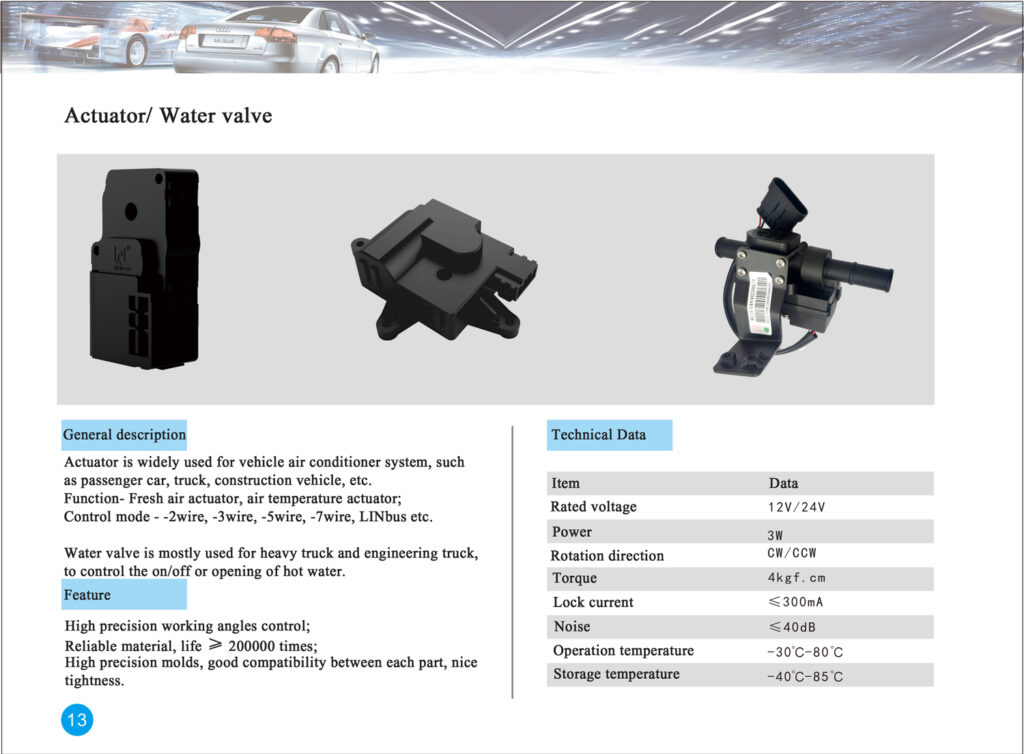

Technical Specifications at a Glance
Compliance, Testing & Quality Assurance
Why NEWBASE Stands Out as Your OEM Partner

The Growing Demand for Precision HVAC Actuators & Valves

The global automotive HVAC actuator market is experiencing robust growth, driven by rising consumer expectations for cabin comfort, increasing vehicle electrification, and the proliferation of multi‑zone automatic climate control systems. According to industry analysis, the automotive actuator market—including blend door, mode, and recirculation actuators—is projected to grow at a CAGR of approximately 6‑7% through 2030, reaching over USD 15 billion. Similarly, the automotive thermal management market, which encompasses heater water valves and coolant control components, is expected to exceed USD 50 billion by 2028, propelled by electric vehicle (EV) heat pump adoption and stricter fuel efficiency mandates.

Modern HVAC systems no longer rely on simple mechanical linkages. Instead, electronic actuators provide precise, software‑controlled positioning of air mix doors, mode doors, and recirculation flaps. Heater water valves have evolved from manual shut‑off cocks to electrically actuated proportional control devices that dynamically regulate coolant flow to the heater core. NEWBASE is at the forefront of these technologies, offering actuators and valves that support CAN/LIN communication, low‑noise operation, and extreme durability—essential for both internal combustion engine (ICE) vehicles and next‑generation EVs.

NEWBASE Blend Door Actuators (Air Door Actuators)

Our blend door actuators are the heart of any automatic or manual HVAC system. They precisely position air mix doors, mode doors (defrost/panel/foot), and recirculation flaps. NEWBASE actuators are engineered to deliver consistent torque, accurate angular positioning, and quiet operation across a wide temperature range.

Key Technical Specifications

Parameter	NEWBASE Blend Door Actuator Performance
Operating Voltage	12V DC (standard) / 24V DC (heavy‑duty)
Power Consumption	3W (nominal)
Control Interfaces	2‑wire (dumb), 3‑wire (feedback), 5‑wire (position sensor), 7‑wire (dual feedback), LIN bus (2.0/2.1 compliant)
Output Torque	4 kgf·cm (0.4 N·m) – up to 6 kgf·cm available on request
Angular Accuracy	±1° (closed‑loop control)
Operating Noise	≤40 dB(A) at 10 cm – ideal for premium cabins
Operating Temperature	-30°C to +80°C (extended -40°C to +85°C optional)
Storage Temperature	-40°C to +90°C
Durability	≥200,000 cycles without performance degradation
Environmental Protection	IP67 (dust‑tight and waterproof for off‑road applications)
Gear Material	POM / PA66 + glass fiber (low wear, low friction)
Housing Material	Flame‑retardant ABS or PC/ABS (UL94 V‑0)

Advanced Design Features

High‑Angle Accuracy (±1°)
Our actuators incorporate precision potentiometers or Hall‑effect sensors with closed‑loop feedback. This ensures that the air mix door reaches the exact commanded position, enabling precise temperature control (±0.5°C at the vents). For multi‑zone systems, this accuracy eliminates driver/passenger temperature mismatches.

Low‑Noise Gearing (≤40 dB)
We use helical or specially contoured spur gears with optimized tooth profiles and lubricated polymer interfaces. The result is near‑silent operation—critical for luxury passenger cars and electric vehicles where HVAC component noise is otherwise noticeable.

LIN Bus Compatibility
NEWBASE actuators support LIN (Local Interconnect Network) 2.x protocols, allowing daisy‑chained communication with the HVAC control panel or central ECU. LIN reduces wiring harness complexity and enables advanced functions such as soft‑stop positioning, diagnostic reporting (stall detection, end‑stop learning), and over‑the‑air calibration.

Modular Compact Design
Our actuators fit into tight dashboard or HVAC unit spaces. The modular housing allows multiple output arm configurations (25°, 35°, 45°, 90° rotations) and custom lever attachments. We also provide integrated connector housings (Molex, TE, JST or custom) to match your vehicle harness.

Wide Torque Range
While the standard model delivers 4 kgf·cm, we can supply high‑torque versions up to 10 kgf·cm for large mode doors or heavy recirculation flaps found in bus and truck HVAC units.

Applications

Passenger cars (single‑zone, dual‑zone, tri‑zone automatic climate control)
Electric vehicles – where quiet operation and low power draw extend range
Buses & coaches – multiple actuators for front/rear evaporator units
Heavy trucks – robust actuators for long‑haul cabins
Construction & agricultural machinery – IP67‑rated actuators for dusty, wet environments
Aftermarket retrofit – direct replacement or upgrade for older HVAC systems

NEWBASE Heater Water Valves

Heater water valves (also known as coolant control valves, heater control valves, or hot water valves) regulate the flow of engine coolant or battery‑heated coolant to the cabin heater core. In internal combustion engine vehicles, they control heater output without adjusting blower speed. In EVs and hybrids, they are critical for efficient heat pump system operation and battery thermal management. NEWBASE manufactures electrically actuated water valves in both on/off and proportional control variants.

Customizable Features (Tailored to Your Vehicle)

Because heater water valve requirements vary widely by vehicle type (passenger car vs. 50‑ton excavator), NEWBASE adopts a fully customizable approach. The following parameters are adapted to your specifications:

Parameter	Customization Options Available
Voltage	12V DC (cars, light trucks) / 24V DC (commercial vehicles, machinery)
Valve Type	On/off (solenoid or motor‑driven) / Proportional (linear or rotary)
Flow Control	0‑100% continuous modulation (proportional valves)
Port Configuration	2‑port (inline), 3‑port (diverting/mixing), or 4‑port (dual circuit)
Body Material	PPS (polyphenylene sulfide) for high temp / Brass / Stainless steel (corrosive environments)
Seal Material	EPDM (standard coolant) / FKM / HNBR for aggressive coolants
Nominal Diameter	12 mm – 40 mm (custom port sizes)
Connection Type	Threaded (NPT, BSP), Flanged, Quick‑connect (VDA, CPC), or Hose barb
Response Time	<2 seconds for full stroke (motor‑driven) / <200 ms for solenoid
Operating Pressure	Up to 150 kPa (standard) / 300 kPa (high‑pressure version)
Operating Temperature	-40°C to +120°C (coolant temperature)
Electrical Protection	Overcurrent shutdown, thermal fuse, reverse polarity protection
Communication	Analog voltage (0‑5V), PWM, LIN bus, or CAN bus

Typical Performance Benchmarks (Representative Values)

While all specifications are customizable, the following represent validated performance ranges from our production models:

Flow rate (full open): 8 – 25 L/min at 100 kPa pressure drop, depending on port size.
Leakage (closed): <0.1 L/min at 150 kPa – near zero for motor‑driven pinch or ball valves.
Durability: ≥150,000 mechanical cycles (on/off) or ≥1 million steps (proportional).
Hysteresis (proportional valves): <3% of full stroke.

Application‑Specific Designs

Heavy‑Duty Trucks & Construction Machinery
Our valves for this segment feature brass or stainless steel bodies, high‑temperature seals, and 24V actuation. They are designed to withstand engine compartment heat, vibration (tested to ISO 16750‑3), and coolant contaminants. Many customers integrate our valves with their electronic thermostat or auxiliary heater systems.

Buses & Passenger Transport
Bus HVAC systems often require multiple heater circuits (front, rear, driver). NEWBASE provides 3‑port and 4‑port proportional valves that enable zone‑specific temperature control, reducing energy waste and improving passenger comfort.

Electric Vehicles (EVs) & Hybrids
In EVs, heater water valves are part of the heat pump and battery thermal management loop. Our proportional valves with LIN/CAN bus interface allow the thermal controller to precisely blend coolant between the battery chiller, condenser, and heater core. This maximizes range by minimizing PTC heater usage. We also offer low‑power‑consumption actuators (＜2W holding current).

Agricultural & Off‑Road Equipment
Tractors, harvesters, and forestry machines face extreme dust, humidity, and vibration. Our IP67‑rated valves with sealed connectors and corrosion‑resistant alloys provide reliable operation in these environments.

Refrigerated Vehicles (Reefers)
For reefer units, water valves control defrost cycles or engine‑waste‑heat recovery. Our on/off valves feature fast response and low leakage to prevent unwanted heat ingress into the refrigerated compartment.

Technical Specifications at a Glance

Component	Key Parameters	NEWBASE Capability
Blend Door Actuator	Voltage	12V / 24V (auto‑detect or fixed)
	Torque	4 – 10 kgf·cm (0.4 – 1.0 N·m)
	Control	2/3/5/7‑wire, LIN 2.x
	Noise	≤40 dB
	Temp range	-30°C to +80°C (extended -40°C to +85°C)
	Sealing	IP67
Heater Water Valve	Voltage	12V or 24V DC
	Type	On/off, proportional (linear/rotary)
	Ports	2, 3, or 4
	Materials	PPS, Brass, SS304/316
	Response	<2 sec (motor) / <200 ms (solenoid)
	Leakage	<0.1 L/min @ 150 kPa
	Temp range	-40°C to +120°C (coolant)

Compliance, Testing & Quality Assurance

NEWBASE operates under a certified IATF 16949:2016 quality management system, specific to automotive component manufacturing. Our actuators and valves undergo stringent validation according to international standards:

ISO 16750‑1 to ‑5 – Road vehicles – Environmental conditions and testing for electrical and electronic equipment (temperature, humidity, vibration, salt spray, chemical resistance).
ECE R10 – Uniform provisions concerning the approval of vehicles with regard to electromagnetic compatibility (EMC). Our components are tested for radiated and conducted emissions/immunity.
RoHS & REACH – Compliance with hazardous substance restrictions for global markets.
Customer‑specific reliability tests – Including thermal shock, 200,000+ cycle endurance, overload torque, and end‑stop stall protection.

Every production batch is subject to:

100% functional testing (voltage, current, output torque, positioning accuracy).
Random sample life testing (accelerated cycle testing).
Leakage testing (for water valves) using helium mass spectrometry or differential pressure.

We maintain full traceability from raw material certificates to final assembly date codes.

Why NEWBASE Stands Out as Your OEM Partner

1. True Custom Engineering – Not Just “Configurable”

Many suppliers offer a handful of standard actuators and valves. NEWBASE starts from your exact requirements: torque profile, rotation angle, connector type, mounting flange, communication protocol, and even gear ratio. Our engineering team uses 3D CAD and rapid prototyping to deliver samples in as little as 4‑6 weeks. We perform reverse engineering of existing components when needed for replacement or upgrade projects.

2. Deep Expertise Across Diverse Segments

We understand that a blend door actuator for a luxury EV requires silent operation and LIN bus, while an actuator for a bulldozer needs IP67 sealing and extended temperature range. Similarly, a heater valve for a city bus requires 3‑port proportional control, whereas a valve for a refrigerated trailer needs fast‑closing solenoid operation. This cross‑segment knowledge allows us to propose optimized solutions that balance performance, cost, and reliability.

3. Robust Quality & Long Life

Our ≥200,000‑cycle actuator durability and ≥150,000‑cycle valve endurance are not just marketing claims—they are validated by independent test reports. We use automotive‑grade components: Hall sensors instead of cheap potentiometers where possible, polymer gears with integrated metal inserts for wear resistance, and double‑lipped shaft seals to prevent moisture ingress.

4. Scalable Production & Cost Efficiency

From prototype batches of 50 units to mass production of 500,000+ units per year, NEWBASE’s manufacturing lines adapt. Automated winding, SMT assembly, and robotic end‑of‑line testing ensure consistency and low defect rates. By controlling the entire supply chain (in‑house mold making, gear production, PCBA assembly), we offer competitive pricing without sacrificing quality.

5. Technical Support & Collaboration

We don’t just ship components—we become your thermal management partner. Our applications engineers assist with:

HVAC unit integration (package space, lever design, cable routing).
LIN/CAN bus communication matrix definition.
Validation test plan creation (including customer‑specific test profiles).
Troubleshooting field returns and implementing corrective actions.

6. Future‑Ready Solutions

As the automotive industry shifts toward software‑defined vehicles and zonal architectures, NEWBASE is developing actuators with embedded intelligence (self‑diagnostics, adaptive end‑stop learning, firmware update via LIN). Our water valves are being designed for 48V systems and for use with low‑GWP refrigerants and new coolants (e.g., R744, R290, glycol‑water mixtures). Partnering with NEWBASE today means your HVAC thermal management system is ready for tomorrow’s regulations and technologies.

Partner with NEWBASE to elevate your vehicle’s HVAC reliability, comfort, and energy efficiency.

From a silent blend door actuator that enhances EV cabin luxury to a rugged heater water valve that endures years of mining truck operation—NEWBASE delivers precision, durability, and customization. We invite OEMs, tier‑1 suppliers, and aftermarket distributors to contact our engineering team for a technical consultation or a custom sample request.

NEWBASE: Precision Motion & Thermal Control for the World’s Vehicles.
